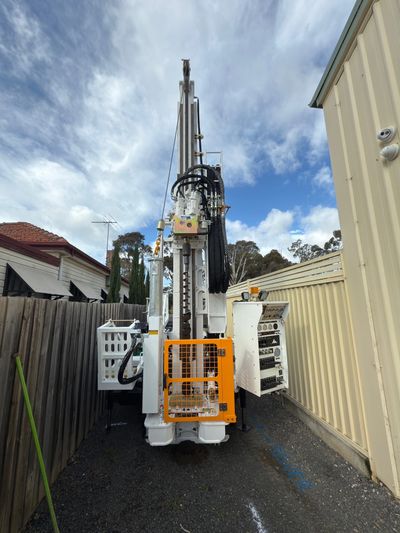

RIG 4 - D&B 8 (Hanjin)

DIMENSIONS

• Width: 2.0 m
• Overall Length: 6.4 m
• Mast Height (Raised): 7.4 m
• Transport Height: 2.0 m
• Operating Weight: 4.2 t

 • Solid Flight Augering (90 mm – 150 mm) – up to 15 m

• Rotary Mud Drilling – up to 80 m

• Rotary Air Drilling – up to 80 m

• Down-the-Hole (DTH) Hammer Drilling – up to 80 m

• Conventional Diamond Coring (NMLC) – up to 80 m

• Wireline Diamond Coring (NQ & HQ) – up to 100 m

• HQ Casing Advancer Systems – up to 100 m

• U50 & U63 Undisturbed Sampling

• Automatic Standard Penetration Testing (SPT)

Length - 3.5m

Width - .950mm (Travelling)

Height mast up - 2.8m/4.4m + (mast extension)

Height mast down - 2.1m

Weight - 2.1 T

• Solid Flight Augering (90 mm – 150 mm) – up to 15 m

• Rotary Mud Drilling – up to 50 m

• Rotary Air Drilling – up to 50 m

• Down-the-Hole (DTH) Hammer Drilling – up to 50 m

• Conventional Diamond Coring (NMLC) – up to 50 m

• Wireline Diamond Coring (NQ & HQ) – up to 20 m

• HQ Casing Advancer Systems – up to 40 m

• U50 & U63 Undisturbed Sampling

• Automatic Standard Penetration Testing (SPT)
